First programs in wxWidgets

In this chapter, we will cover the basics needed to create wxWidgets applications. We will create our first simple example, show how to display an icon. Next we will create a simple example demonstrating usage of an event. Finally, we will see, how widgets communicate in wxWidgets applications.

A simple application

First we create the very basic wxWidgets program.

simple.bmx <- Open source
SuperStrict

Framework wx.wxApp
Import wx.wxFrame

New MyApp.Run()

Type MyApp Extends wxApp

	Method OnInit:Int()

		Local sim:Simple = Simple(New Simple.Create(Null, wxID_ANY, ..
			"Simple", -1, -1, 250, 150))
		sim.Show(True)

		Return True
	End Method

End Type

Type Simple Extends wxFrame

	Method OnInit()

		Centre()

	End Method

End Type

This very basic example shows a small window on the screen. The window is centered.

 Centre()

This method centers the window on the screen. Both horizontally and vertically.

New MyApp.Run()

Type MyApp Extends wxApp
	Method OnInit:Int()
		...
		Return True
	End Method
End Type

The wxApp type is the basic building block of a wxWidgets application. You implement a sub-type of wxApp and override the OnInit() method. Here you can initialize data, create windows, and perform any other startup routines for your application.

You return True from OnInit() to indicate that the application started successfully, in which case wxWidgets takes control and starts processing events. If you return False, the application will terminate.

Figure: Simple

Showing an application icon

In this example, we provide an icon for our application. It became a standard to display a small icon in the upper left corner of the window. The icon is a graphical identity of the program.

icon.bmx
SuperStrict

Framework wx.wxApp
Import wx.wxFrame
Import wx.wxImage

New MyApp.Run()

Type MyApp Extends wxApp

	Method OnInit:Int()

		wxImage.AddHandler( New wxPNGHandler )

		Local ic:Icon = Icon(New Icon.Create(Null, wxID_ANY, ..
			"Icon", -1, -1, 250, 150))
		ic.Show(True)

		Return True
	End Method

End Type

Type Icon Extends wxFrame

	Method OnInit()

		SetIcon(wxIcon.CreateFromFile("../media/world.png", wxBITMAP_TYPE_PNG))

		Centre()

	End Method

End Type

In our example we show a small web icon.

  SetIcon(wxIcon.CreateFromFile("../media/world.png", wxBITMAP_TYPE_PNG))

To display an application icon is a matter of one code line.

wxImage.AddHandler( New wxPNGHandler )

AddHandler tells wxWidgets to enable certain kinds of image formats. In this case, PNG images.

Figure: Icon

A simple button

In the following example, we create a button on the frame widget. We will show, how to create a simple event handler.

button.bmx
SuperStrict

Framework wx.wxApp
Import wx.wxFrame
Import wx.wxPanel
Import wx.wxButton

New MyApp.Run()

Type MyApp Extends wxApp

	Method OnInit:Int()

		Local btn:Button = Button(New Button.Create(Null, wxID_ANY, ..
			"Button", -1, -1, 270, 150))
		btn.Show(True)

		Return True
	End Method

End Type

Type Button Extends wxFrame

	Method OnInit()

		Local panel:wxPanel = New wxPanel.Create(Self, wxID_ANY)

		Local button:wxButton = New wxButton.Create(panel, wxID_EXIT, "Quit", 20, 20)

		Connect(wxID_EXIT, wxEVT_COMMAND_BUTTON_CLICKED, OnQuit)
		button.SetFocus()

		Centre()

	End Method

	Function OnQuit(event:wxEvent)
		wxWindow(event.parent).Close(True)
	End Function

End Type

 Local panel:wxPanel = New wxPanel.Create(Self, wxID_ANY)

First we create a wxPanel widget. It will be placed inside a wxFrame widget.

 Local button:wxButton = New wxButton.Create(panel, wxID_EXIT, "Quit", 20, 20)

We create a wxButton widget. It is placed on the panel. We use the predefined wxID_EXIT id for the button. It will cause to display a small exit icon on the button (on Linux). The label of the button is "Quit". The button is positioned manually at x=20, y=20 coordinates. The beginning of the coordinate system is at the upper left hand corner.

 Connect(wxID_EXIT, wxEVT_COMMAND_BUTTON_CLICKED, OnQuit)

If we click on the button, a wxEVT_COMMAND_BUTTON_CLICKED event is generated. We connect the event to the OnQuit() function of the Button type. So when we click on the button, the OnQuit() function is called.

 button.SetFocus()

We set the keyboard focus to the button. So if we press the enter key, the button is being clicked.

 wxWindow(event.parent).Close(True)

Inside the OnQuit() function, we call the Close() method. This will terminate our application.

The event.parent field holds the widget reference which raised the event. This gives us access to the widget methods.

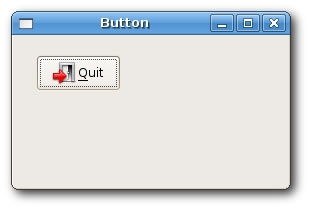

Figure: Button

Widgets communicate

It is important to know, how widgets can communicate in application. Follow the next example.

communicate.bmx
SuperStrict

Framework wx.wxApp
Import wx.wxFrame
Import wx.wxPanel
Import wx.wxButton
Import wx.wxStaticText

Const ID_PLUS:Int = 101
Const ID_MINUS:Int = 102

New MyApp.Run()

Type MyApp Extends wxApp

	Method OnInit:Int()

		Local btn:Communicate = Communicate(New Communicate.Create(Null, wxID_ANY, ..
			"Widgets communicate", -1, -1, 290, 150))
		btn.Show(True)

		Return True
	End Method

End Type

Type Communicate Extends wxFrame

	Field m_lp:LeftPanel
	Field m_rp:RightPanel
	Field m_parent:wxPanel

	Method OnInit()

		m_parent = New wxPanel.Create(Self, wxID_ANY)

		Local hbox:wxBoxSizer = New wxBoxSizer.Create(wxHORIZONTAL)

		m_lp = LeftPanel(New LeftPanel.Create(m_parent,,,,,,wxBORDER_SUNKEN))
		m_rp = RightPanel(New RightPanel.Create(m_parent,,,,,,wxBORDER_SUNKEN))

		hbox.Add(m_lp, 1, wxEXPAND | wxALL, 5)
		hbox.Add(m_rp, 1, wxEXPAND | wxALL, 5)

		m_parent.SetSizer(hbox)

		Centre()

	End Method

	Function OnQuit(event:wxEvent)
		wxWindow(event.parent).Close(True)
	End Function

End Type

Type LeftPanel Extends wxPanel

	Field m_plus:wxButton
	Field m_minus:wxButton
	Field m_parent:wxPanel
	Field count:Int

	Method OnInit()
		count = 0
		m_parent = wxPanel(GetParent())

		m_plus = New wxButton.Create(Self, ID_PLUS, "+", 10, 10)
		m_minus = New wxButton.Create(Self, ID_MINUS, "-", 10, 60)

		Connect(ID_PLUS, wxEVT_COMMAND_BUTTON_CLICKED, OnPlus)
		Connect(ID_MINUS, wxEVT_COMMAND_BUTTON_CLICKED, OnMinus)
	End Method

	Function OnPlus(event:wxEvent)
		Local panel:LeftPanel = LeftPanel(event.parent)

		panel.count:+ 1

		Local comm:Communicate = Communicate(panel.m_parent.GetParent())
		comm.m_rp.m_text.SetLabel(panel.count)
	End Function

	Function OnMinus(event:wxEvent)
		Local panel:LeftPanel = LeftPanel(event.parent)

		panel.count:- 1

		Local comm:Communicate = Communicate(panel.m_parent.GetParent())
		comm.m_rp.m_text.SetLabel(panel.count)
	End Function

End Type

Type RightPanel Extends wxPanel

	Field m_text:wxStaticText

	Method OnInit()
		m_text = New wxStaticText.Create(Self, -1, "0", 40, 60)
	End Method

	Function OnSetText(event:wxEvent)
	End Function

End Type

In our example we have two panels. A left and right panel. The left panel has two buttons. The right panel has one static text. The buttons change the number displayed in the static text. The question is, how do we grab the reference to the static text?

 m_parent = wxPanel(GetParent())

Here we save the reference to the parent widget of the LeftPanel. It is a wxPanel widget.

 Local comm:Communicate = Communicate(panel.m_parent.GetParent())
 comm.m_rp.m_text.SetLabel(panel.count)

These two lines are the most important lines of the example. It is shown, how we get access to the static text widget, which is placed on a different panel. First we get the parent of the both left and right panels. This parent widget has a reference to the right panel. And the right panel has a reference to the static text.

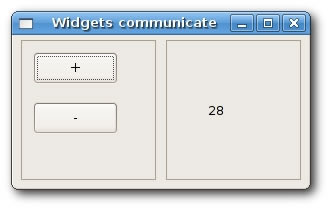

Figure: Widgets communicate
