Device Contexts

The GDI (Graphics Device Interface) is an interface for working with graphics. It is used to interact with graphic devices such as monitor, printer or a file. The GDI allows programmers to display data on a screen or printer without having to be concerned about the details of a particular device. The GDI insulates the programmer from the hardware.

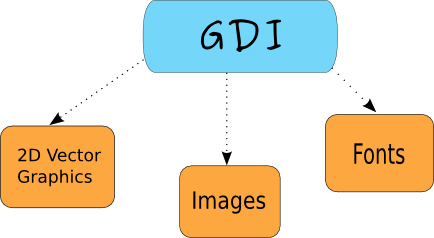

The GDI
Figure: The GDI structure

From the programmer's point of view, the GDI is a group of classes and methods for working with graphics. The GDI consists of 2D Vector Graphics, Fonts and Images.

To begin drawing graphics, we must create a device context (DC) object. In wxWidgets the device context is called wxDC. The documentation defines wxDC as a device context onto which which graphics and text can be drawn. It represents number of devices in a generic way. Same piece of code can write to different kinds of devices. Be it a screen or a printer. The wxDC is not intended to be used directly. Instead a programmer should choose one of the derived classes. Each derived class is intended to be used under specific conditions.

Derived wxDC classes

The wxScreenDC is used to draw anywhere on the screen. The wxWindowDC is used if we want to paint on the whole window (Windows only). This includes window decorations. The wxClientDC is used to draw on the client area of a window. The client area is the area of a window without it's decorations (title and border). The wxPaintDC is used to draw on the client area as well. But there is one difference between the wxPaintDC and the wxClientDC. The wxPaintDC should be used only from a wxPaintEvent. The wxClientDC shoud not be used from a wxPaintEvent. The wxMemoryDC is used to draw graphics on the bitmap. The wxPostScriptDC is used to write to PostScript files on any platform. The wxPrinterDC is used to access a printer.

Simple line

We begin with drawing a line.

line.bmx <- Open source
SuperStrict Framework wx.wxApp Import wx.wxFrame New MyApp.Run() Type MyApp Extends wxApp Method OnInit:Int() Local ln:Line = Line(New Line.Create(Null, wxID_ANY, .. "Line", -1, -1, 280, 180)) ln.Show(True) Return True End Method End Type Type Line Extends wxFrame Method OnInit() ConnectAny(wxEVT_PAINT, OnPaint) Centre() End Method Function OnPaint(event:wxEvent) Local dc:wxPaintDC = New wxPaintDC.Create(wxWindow(event.parent)) Local x1:Int = 50, y1:Int = 60 Local x2:Int = 190, y2:Int = 60 dc.DrawLine(x1, y1, x2, y2) dc.Free() End Function End Type

In our example, we draw a simple line onto the client area of the window. If we resize the window, it is redrawn. An wxPaintEvent is generated. And the line is drawn again.

 Function OnPaint(event:wxEvent)

Here we declare a OnPaint() event handler function.

 ConnectAny(wxEVT_PAINT, OnPaint)

We connect a paint event to the OnPaint() method. All the drawing happens inside the OnPaint() event handler.

 Local dc:wxPaintDC = New wxPaintDC.Create(wxWindow(event.parent))

We define a wxPaintDC device context. It is a device context, that is used to draw on the window inside the wxPaintEvent

 Local x1:Int = 50,  y1:Int = 60
 Local x2:Int = 190, y2:Int = 60

We define four coordinates.

  dc.DrawLine(x1, y1, x2, y2)

We draw a simple line calling the DrawLine() method.

  dc.Free()

Finally, we call the Free() method to close and free the device context.


Line
Figure: A simple line

Drawing text

Drawing some text on the window is easy.


SuperStrict

Framework wx.wxApp
Import wx.wxFrame

New MyApp.Run()

Type MyApp Extends wxApp

	Method OnInit:Int()

		Local txt:Text = Text(New Text.Create(Null, wxID_ANY, ..
			"Text", -1, -1, 250, 150))
		txt.Show(True)

		Return True
	End Method

End Type

Type Text Extends wxFrame

	Method OnInit()

		ConnectAny(wxEVT_PAINT, OnPaint)
		Centre()

	End Method

	Function OnPaint(event:wxEvent)

		Local dc:wxPaintDC = New wxPaintDC.Create(wxWindow(event.parent))

		dc.DrawText("Лев Николaевич Толстoй", 40, 60)
		dc.DrawText("Анна Каренина", 70, 80)

		dc.Free()
	End Function

End Type

In our example, we draw text Lev Nikolayevich Tolstoy, Anna Karenina in russian azbuka onto the window.

  dc.DrawText("Лев Николaевич Толстoй", 40, 60)
  dc.DrawText("Анна Каренина", 70, 80)

The DrawText() method draws text on the window. It Draws a text string at the specified point, using the current text font, and the current text foreground and background colours.


Drawing text
Figure: Drawing text

Point

The simplest geometrical object is a point. It is a plain dot on the window.

 DrawPoint(x:Int, y:Int)

This method draws a point at x, y coordinates.


SuperStrict

Framework wx.wxApp
Import wx.wxFrame
Import BRL.Random

New MyApp.Run()

Type MyApp Extends wxApp

	Method OnInit:Int()

		Local pts:Points = Points(New Points.Create(Null, wxID_ANY, ..
			"Points", -1, -1, 250, 150))
		pts.Show(True)

		Return True
	End Method

End Type

Type Points Extends wxFrame

	Method OnInit()

		SeedRnd(MilliSecs())
		ConnectAny(wxEVT_PAINT, OnPaint)
		Centre()

	End Method

	Function OnPaint(event:wxEvent)
		Local this:Points = Points(event.parent)

		Local dc:wxPaintDC = New wxPaintDC.Create(this)

		Local x:Int = 0
		Local y:Int = 0

		Local width:Int, height:Int
		this.GetSize(width, height)

		For Local i:Int = 0 Until 1000
		    x = Rand(0, width) + 1
		    y = Rand(0, height) + 1
		    dc.DrawPoint(x, y)
		Next

		dc.Free()
	End Function

End Type

A single point might be difficult to see. So we create 1000 points. Each time the window is resized, we draw the 1000 points over the client area of the window.

  wxSize size = this->GetSize();

Here we get the size of the window.

 x = rand() % size.x + 1;

Here we get a random number in the range of 1 to size.x.


Points
Figure: Points

Pen

Pen is an elementary graphics object. It is used to draw lines, curves and outlines of rectangles, ellipses, polygons or other shapes.

 wxPen.CreateFromColour(colour:wxColour, width:Int = 1, style:Int = wxSOLID)

The wxPen constructor has three parameters. Colour, width and style. Follows a list of possible pen styles. Pen styles


SuperStrict

Framework wx.wxApp
Import wx.wxFrame

New MyApp.Run()

Type MyApp Extends wxApp

	Method OnInit:Int()

		Local p:Pen = Pen(New Pen.Create(Null, wxID_ANY, ..
			"Pen", -1, -1, 360, 200))
		p.Show(True)

		Return True
	End Method

End Type

Type Pen Extends wxFrame

	Method OnInit()

		ConnectAny(wxEVT_PAINT, OnPaint)
		Centre()

	End Method

	Function OnPaint(event:wxEvent)
		Local dc:wxPaintDC = New wxPaintDC.Create(wxWindow(event.parent))

		Local col1:wxColour = New wxColour.CreateNamedColour("#0c0c0c")
		Local col2:wxColour = New wxColour.CreateNamedColour("#000000")

		Local brush:wxBrush = New wxBrush.CreateFromColour(..
			New wxColour.Create(255, 255, 255), wxTRANSPARENT)
		dc.SetBrush(brush)

		dc.SetPen(New wxPen.CreateFromColour(col1, 1, wxSOLID))
		dc.DrawRectangle(10, 15, 90, 60)

		dc.SetPen(New wxPen.CreateFromColour(col1, 1, wxDOT))
		dc.DrawRectangle(130, 15, 90, 60)

		dc.SetPen(New wxPen.CreateFromColour(col1, 1, wxLONG_DASH))
		dc.DrawRectangle(250, 15, 90, 60)

		dc.SetPen(New wxPen.CreateFromColour(col1, 1, wxSHORT_DASH))
		dc.DrawRectangle(10, 105, 90, 60)

		dc.SetPen(New wxPen.CreateFromColour(col1, 1, wxDOT_DASH))
		dc.DrawRectangle(130, 105, 90, 60)

		dc.SetPen(New wxPen.CreateFromColour(col1, 1, wxTRANSPARENT))
		dc.DrawRectangle(250, 105, 90, 60)

		dc.Free()
	End Function

End Type

In our example, we draw 6 rectangles with different pen styles. The last one is transparent, not visible.

 dc.SetPen(New wxPen.CreateFromColour(col1, 1, wxSOLID))
 dc.DrawRectangle(10, 15, 90, 60)

Here we define a pen for our first rectangle. We set a pen with color col1 (#0c0c0c), 1 pixel wide, solid. The DrawRectangle() method draws the rectangle.

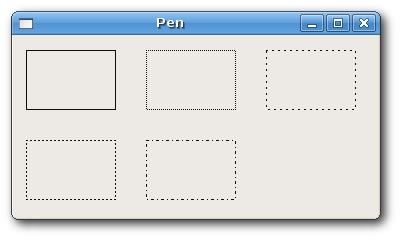

Pen
Figure: Pen

Regions

Regions can be combined to create more complex shapes. We can use four set operations. Union, Intersect, Substract and Xor. The following example shows all four operations in action.


SuperStrict

Framework wx.wxApp
Import wx.wxFrame

New MyApp.Run()

Type MyApp Extends wxApp

	Method OnInit:Int()

		Local rgn:Regions = Regions(New Regions.Create(Null, wxID_ANY, ..
			"Regions", -1, -1, 270, 220))
		rgn.Show(True)

		Return True
	End Method

End Type

Type Regions Extends wxFrame

	Method OnInit()

		ConnectAny(wxEVT_PAINT, OnPaint)
		Centre()

	End Method

	Function OnPaint(event:wxEvent)

		Local dc:wxPaintDC = New wxPaintDC.Create(wxWindow(event.parent))

		Local gray:wxColour = New wxColour.CreateNamedColour("#d4d4d4")
		Local white:wxColour = New wxColour.CreateNamedColour("#ffffff")
		Local red:wxColour = New wxColour.CreateNamedColour("#ff0000")
		Local orange:wxColour = New wxColour.CreateNamedColour("#fa8e00")
		Local green:wxColour = New wxColour.CreateNamedColour("#619e1b")
		Local brown:wxColour = New wxColour.CreateNamedColour("#715b33")
		Local blue:wxColour = New wxColour.CreateNamedColour("#0d0060")

		dc.SetPen(New wxPen.CreateFromColour(gray))

		dc.DrawRectangle(20, 20, 50, 50)
		dc.DrawRectangle(30, 40, 50, 50)

		dc.SetBrush(New wxBrush.CreateFromColour(white))
		dc.DrawRectangle(100, 20, 50, 50)
		dc.DrawRectangle(110, 40, 50, 50)
		Local region1:wxRegion = New wxRegion.Create(100, 20, 50, 50)
		Local region2:wxRegion = New wxRegion.Create(110, 40, 50, 50)
		region1.IntersectRegion(region2)
		Local rect1:wxRect = region1.GetBoxRect()
		dc.SetClippingRegionRegion(region1)
		dc.SetBrush(New wxBrush.CreateFromColour(red))
		dc.DrawRectangleRect(rect1)
		dc.DestroyClippingRegion()

		dc.SetBrush(New wxBrush.CreateFromColour(white))
		dc.DrawRectangle(180, 20, 50, 50)
		dc.DrawRectangle(190, 40, 50, 50)
		Local region3:wxRegion = New wxRegion.Create(180, 20, 50, 50)
		Local region4:wxRegion = New wxRegion.Create(190, 40, 50, 50)
		region3.UnionRegion(region4)
		dc.SetClippingRegionRegion(region3)
		Local rect2:wxRect = region3.GetBoxRect()
		dc.SetBrush(New wxBrush.CreateFromColour(orange))
		dc.DrawRectangleRect(rect2)
		dc.DestroyClippingRegion()

		dc.SetBrush(New wxBrush.CreateFromColour(white))
		dc.DrawRectangle(20, 120, 50, 50)
		dc.DrawRectangle(30, 140, 50, 50)
		Local region5:wxRegion = New wxRegion.Create(20, 120, 50, 50)
		Local region6:wxRegion = New wxRegion.Create(30, 140, 50, 50)
		region5.XorRegion(region6)
		Local rect3:wxRect = region5.GetBoxRect()
		dc.SetClippingRegionRegion(region5)
		dc.SetBrush(New wxBrush.CreateFromColour(green))
		dc.DrawRectangleRect(rect3)
		dc.DestroyClippingRegion()

		dc.SetBrush(New wxBrush.CreateFromColour(white))
		dc.DrawRectangle(100, 120, 50, 50)
		dc.DrawRectangle(110, 140, 50, 50)
		Local region7:wxRegion = New wxRegion.Create(100, 120, 50, 50)
		Local region8:wxRegion = New wxRegion.Create(110, 140, 50, 50)
		region7.SubtractRegion(region8)
		Local rect4:wxRect = region7.GetBoxRect()
		dc.SetClippingRegionRegion(region7)
		dc.SetBrush(New wxBrush.CreateFromColour(brown))
		dc.DrawRectangleRect(rect4)
		dc.DestroyClippingRegion()

		dc.SetBrush(New wxBrush.CreateFromColour(white))
		dc.DrawRectangle(180, 120, 50, 50)
		dc.DrawRectangle(190, 140, 50, 50)
		Local region9:wxRegion = New wxRegion.Create(180, 120, 50, 50)
		Local region10:wxRegion = New wxRegion.Create(190, 140, 50, 50)
		region10.SubtractRegion(region9)
		Local rect5:wxRect = region10.GetBoxRect()
		dc.SetClippingRegionRegion(region10)
		dc.SetBrush(New wxBrush.CreateFromColour(blue))
		dc.DrawRectangleRect(rect5)
		dc.DestroyClippingRegion()

		dc.Free()
	End Function

End Type

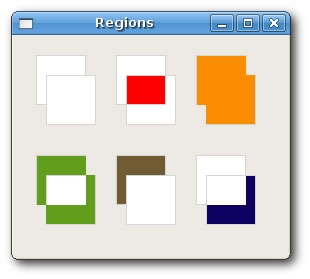

Regions
Figure: Regions

Gradient

In computer graphics, gradient is a smooth blending of shades from light to dark or from one color to another. In 2D drawing programs and paint programs, gradients are used to create colorful backgrounds and special effects as well as to simulate lights and shadows. (answers.com)

  GradientFillLinear(x:Int, y:Int, w:Int, h:Int, ..
    initialColour:wxColour, destColour:wxColour, direction:Int = wxEAST)

  GradientFillLinearRect(rect:wxRect, initialColour:wxColour, ..
    destColour:wxColour, direction:Int = wxEAST)

This method fills the area specified by a rect with a linear gradient, starting from initialColour and eventually fading to destColour. The nDirection parameter specifies the direction of the colour change, the default value is wxEAST.


SuperStrict

Framework wx.wxApp
Import wx.wxFrame

New MyApp.Run()

Type MyApp Extends wxApp

	Method OnInit:Int()

		Local txt:Gradient = Gradient(New Gradient.Create(Null, wxID_ANY, ..
			"Gradient", -1, -1, 220, 280))
		txt.Show(True)

		Return True
	End Method

End Type

Type Gradient Extends wxFrame

	Method OnInit()

		ConnectAny(wxEVT_PAINT, OnPaint)
		Centre()

	End Method

	Function OnPaint(event:wxEvent)

		Local dc:wxPaintDC = New wxPaintDC.Create(wxWindow(event.parent))

		Local col1:wxColour = New wxColour.CreateNamedColour("#e12223")
		Local col2:wxColour = New wxColour.CreateNamedColour("#000000")

		dc.GradientFillLinear(20, 20, 180, 40, col1, col2, wxNORTH)
		dc.GradientFillLinear(20, 80, 180, 40, col1, col2, wxSOUTH)
		dc.GradientFillLinear(20, 140, 180, 40, col1, col2, wxEAST)
		dc.GradientFillLinear(20, 200, 180, 40, col1, col2, wxWEST)

		dc.Free()
	End Function

End Type

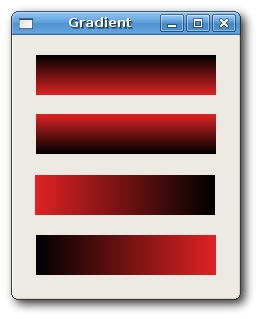

Gradient
Figure: Gradient

Shapes

Shapes are more sophisticated geometrical objects. We will draw various geometrical shapes in the following example.


SuperStrict

Framework wx.wxApp
Import wx.wxFrame

New MyApp.Run()

Type MyApp Extends wxApp

	Method OnInit:Int()

		Local txt:Shapes = Shapes(New Shapes.Create(Null, wxID_ANY, ..
			"Shapes", -1, -1, 350, 300))
		txt.Show(True)

		Return True
	End Method

End Type

Type Shapes Extends wxFrame

	Method OnInit()

		ConnectAny(wxEVT_PAINT, OnPaint)
		Centre()

	End Method

	Function OnPaint(event:wxEvent)

		Local dc:wxPaintDC = New wxPaintDC.Create(wxWindow(event.parent))

		Local lines:Int[] = [ 20, 260, 100, 260, 20, 210, ..
			100, 210 ]
		Local polygon:Int[] = [ 130, 140, 180, 170, 180, 140, ..
			220, 110, 140, 100 ]
		Local splines:Int[] = [ 240, 170, 280, 170, 285, 110, ..
			325, 110 ]

		dc.DrawEllipse(20, 20, 90, 60)
		dc.DrawRoundedRectangle(130, 20, 90, 60, 10)
		dc.DrawArc(240, 40, 340, 40, 290, 20)

		dc.DrawPolygon(polygon)
		dc.DrawRectangle(20, 120, 80, 50)
		dc.DrawSpline(splines)

		dc.DrawLines(lines)
		dc.DrawCircle(170, 230, 35)
		dc.DrawRectangle(250, 200, 60, 60)

		dc.Free()
	End Function

End Type

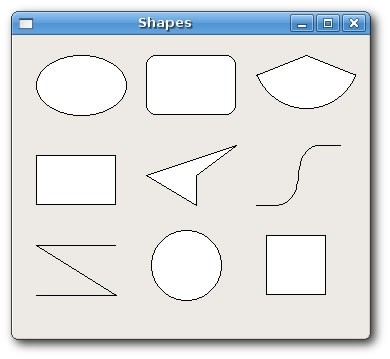

Shapes
Figure: Shapes
