The tetris game in wxWidgets

Tetris

The tetris game is one of the most popular computer games ever created. The original game was designed and programmed by a russian programmer Alexey Pajitnov in 1985. Since then, tetris is available on almost every computer platform in lots of variations. Even my mobile phone has a modified version of the tetris game.

Tetris is called a falling block puzzle game. In this game, we have seven different shapes called tetrominoes. S-shape, Z-shape, T-shape, L-shape, Line-shape, MirroredL-shape and a Square-shape. Each of these shapes is formed with four squares. The shapes are falling down the board. The object of the tetris game is to move and rotate the shapes, so that they fit as much as possible. If we manage to form a row, the row is destroyed and we score. We play the tetris game until we top out.

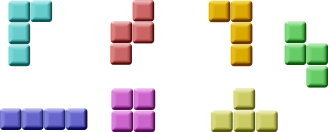

Figure: Tetrominoes

wxWidgets is a toolkit designed to create applications. There are other libraries which are targeted at creating computer games. Nevertheless, wxWidgets and other application toolkits can be used to create games.

The development

We do not have images for our tetris game, we draw the tetrominoes using the drawing API available in the wxWidgets programming toolkit. Behind every computer game, there is a mathematical model. So it is in tetris.

Some ideas behind the game.

We use wxTimer to create a game cycle
The tetrominoes are drawn
The shapes move on a square by square basis (not pixel by pixel)
Mathematically a board is a simple list of numbers

tetris.bmx <- Open source
SuperStrict

Framework wx.wxApp
Import wx.wxFrame
Import wx.wxPanel
Import wx.wxTimer
Import BRL.Random

Const NoShape:Int = 0
Const ZShape:Int = 1
Const SShape:Int = 2
Const LineShape:Int = 3
Const TShape:Int = 4
Const SquareShape:Int = 5
Const LShape:Int = 6
Const MirroredLShape:Int = 7

New MyApp.Run()

Type MyApp Extends wxApp

	Method OnInit:Int()

		SeedRnd(MilliSecs())

		Local tet:Tetris = Tetris(New Tetris.Create(Null, wxID_ANY, ..
			"Tetris", -1, -1, 180, 380))
		tet.Centre()
		tet.Show(True)

		Return True
	End Method

End Type

Type Tetris Extends wxFrame

	Method OnInit()

		Local sb:wxStatusBar = CreateStatusBar()
		sb.SetStatusText("0")

		Local brd:Board = Board(New Board.Create(Self,,,,,,wxWANTS_CHARS))
		brd.SetFocus()
		brd.Start()

	End Method

End Type


Type Board Extends wxPanel

	Field timer:wxTimer

	Field isStarted:Int
	Field isPaused:Int
	Field isFallingFinished:Int
	Field curPiece:Shape = New Shape
	Field curX:Int
	Field curY:Int
	Field numLinesRemoved:Int
	Field theBoard:Int[] = New Int[BoardWidth * BoardHeight]
	Field m_stsbar:wxStatusBar


	Method OnInit()
		timer = New wxTimer.Create(Self, 1)

		m_stsbar = wxFrame(GetParent()).GetStatusBar()
		isFallingFinished = False
		isStarted = False
		isPaused = False
		numLinesRemoved = 0
		curX = 0
		curY = 0

		ClearBoard()

		ConnectAny(wxEVT_PAINT, _OnPaint)
		ConnectAny(wxEVT_KEY_DOWN, _OnKeyDown)
		ConnectAny(wxEVT_TIMER, _OnTimer)
	End Method

	Const BoardWidth:Int = 10
	Const BoardHeight:Int = 22

	Method ShapeAt:Int(x:Int, y:Int)
		Return theBoard[(y * BoardWidth) + x]
	End Method

	Method SetShapeAt(x:Int, y:Int, shape:Int)
		theBoard[(y * BoardWidth) + x] = shape
	End Method

	Method SquareWidth:Int()
		Local width:Int, height:Int
		GetClientSize(width, height)
		Return width / BoardWidth
	End Method

	Method SquareHeight:Int()
		Local width:Int, height:Int
		GetClientSize(width, height)
		Return height / BoardHeight
	End Method

	Method Start()
		If isPaused Then
			Return
		End If

		isStarted = True
		isFallingFinished = False
		numLinesRemoved = 0
		ClearBoard()

		NewPiece()
		timer.Start(300)
	End Method

	Method Pause()
		If Not isStarted Then
			Return
		End If

		isPaused = Not isPaused
		If isPaused Then
			timer.Stop()
			m_stsbar.SetStatusText("paused")
		Else
			timer.Start(300)
			m_stsbar.SetStatusText(numLinesRemoved)
		End If
		Refresh()
	End Method

	Function _OnPaint(event:wxEvent)
		Board(event.parent).OnPaint(wxPaintEvent(event))
	End Function

	Method OnPaint(event:wxPaintEvent)
		Local dc:wxPaintDC = New wxPaintDC.Create(Self)

		Local width:Int, height:Int
		GetClientSize(width, height)

		Local boardTop:Int = height - BoardHeight * SquareHeight()


		For Local i:Int = 0 Until BoardHeight
			For Local j:Int = 0 Until BoardWidth
				Local shape:Int = ShapeAt(j, BoardHeight - i - 1)
				If shape <> NoShape Then
					DrawSquare(dc, 0 + j * SquareWidth(), ..
						boardTop + i * SquareHeight(), shape)
				End If
			Next
		Next

		If curPiece.GetShape() <> NoShape Then
			For Local i:Int = 0 Until 4
				Local x:Int = curX + curPiece.x(i)
				Local y:Int = curY - curPiece.y(i)
				DrawSquare(dc, 0 + x * SquareWidth(), boardTop + ..
					(BoardHeight - y - 1) * SquareHeight(), ..
					curPiece.GetShape())
			Next
		End If

		dc.Free()
	End Method

	Function _OnKeyDown(event:wxEvent)
		Board(event.parent).OnKeyDown(wxKeyEvent(event))
	End Function

	Method OnKeyDown(event:wxKeyEvent)

		If Not isStarted Or curPiece.GetShape() = NoShape Then
			event.Skip()
			Return
		End If

		Local keycode:Int = event.GetKeyCode()

		If keycode = Asc("p") Or keycode = Asc("P") Then
			Pause()
			Return
		End If

		If isPaused Then
			Return
		End If

		Select keycode
			Case WXK_LEFT
				TryMove(curPiece, curX - 1, curY)
			Case WXK_RIGHT
				TryMove(curPiece, curX + 1, curY)
			Case WXK_DOWN
				TryMove(curPiece.RotateRight(), curX, curY)
			Case WXK_UP
				TryMove(curPiece.RotateLeft(), curX, curY)
			Case WXK_SPACE
				DropDown()
			Case Asc("d"), Asc("D")
				OneLineDown()
			Default
				event.Skip()
		End Select

	End Method

	Function _OnTimer(event:wxEvent)
		Board(event.parent).OnTimer(wxTimerEvent(event))
	End Function

	Method OnTimer(event:wxTimerEvent)
		If isFallingFinished Then
			isFallingFinished = False
			NewPiece()
		Else
			OneLineDown()
		End If
	End Method

	Method ClearBoard()
		For Local i:Int = 0 Until BoardHeight * BoardWidth
			theBoard[i] = NoShape
		Next
	End Method

	Method DropDown()
		Local newY:Int = curY
		While newY > 0
			If Not TryMove(curPiece, curX, newY - 1)
				Exit
			End If
			newY:- 1
		Wend
		PieceDropped()
	End Method

	Method OneLineDown()
		If Not TryMove(curPiece, curX, curY - 1) Then
			PieceDropped()
		End If
	End Method

	Method PieceDropped()
		For Local i:Int = 0 Until 4
			Local x:Int = curX + curPiece.x(i)
			Local y:Int = curY - curPiece.y(i)
			SetShapeAt(x, y, curPiece.GetShape())
		Next

		RemoveFullLines()

		If Not isFallingFinished Then
			NewPiece()
		End If
	End Method

	Method RemoveFullLines()
		Local numFullLines:Int = 0

		For Local i:Int = BoardHeight - 1 To 0 Step - 1
			Local lineIsFull:Int = True

			For Local j:Int = 0 Until BoardWidth
				If ShapeAt(j, i) = NoShape Then
					lineIsFull = False
					Exit
				End If
			Next

			If lineIsFull Then
				numFullLines:+ 1
				For Local k:Int = i Until BoardHeight - 1
					For Local j:Int = 0 Until BoardWidth
						SetShapeAt(j, k, ShapeAt(j, k + 1))
					Next
				Next
			End If
		Next

		If numFullLines > 0 Then
			numLinesRemoved :+ numFullLines
			m_stsbar.SetStatusText(numLinesRemoved)

			isFallingFinished = True
			curPiece.SetShape(NoShape)
			Refresh()
		End If
	End Method

	Method NewPiece()
		curPiece.SetRandomShape()
		curX = BoardWidth / 2 + 1
		curY = BoardHeight - 1 + curPiece.MinY()

		If Not TryMove(curPiece, curX, curY)
			curPiece.SetShape(NoShape)
			timer.Stop()
			isStarted = False
			m_stsbar.SetStatusText("game over")
		End If
	End Method

	Method TryMove:Int(newPiece:Shape, newX:Int, newY:Int)
		For Local i:Int = 0 Until 4
			Local x:Int = newX + newPiece.x(i)
			Local y:Int = newY - newPiece.y(i)
			If x < 0 Or x >= BoardWidth Or y < 0 Or y >= BoardHeight Then
				Return False
			End If
			If ShapeAt(x, y) <> NoShape Then
				Return False
			End If
		Next

		curPiece = newPiece
		curX = newX
		curY = newY
		Refresh()
		Return True
	End Method

	Method DrawSquare(dc:wxPaintDC, x:Int, y:Int, shape:Int)

		Global colors:wxColour [] = [ ..
			New wxColour.Create(0, 0, 0), ..
			New wxColour.Create(204, 102, 102), ..
			New wxColour.Create(102, 204, 102), ..
			New wxColour.Create(102, 102, 204), ..
			New wxColour.Create(204, 204, 102), ..
			New wxColour.Create(204, 102, 204), ..
			New wxColour.Create(102, 204, 204), ..
			New wxColour.Create(218, 170, 0) ]

		Global light:wxColour[] = [ ..
			New wxColour.Create(0, 0, 0), ..
			New wxColour.Create(248, 159, 171), ..
			New wxColour.Create(121, 252, 121), ..
			New wxColour.Create(121, 121, 252), ..
			New wxColour.Create(252, 252, 121), ..
			New wxColour.Create(252, 121, 252), ..
			New wxColour.Create(121, 252, 252), ..
			New wxColour.Create(252, 198, 0) ]

		Global dark:wxColour[] = [ ..
			New wxColour.Create(0, 0, 0), ..
			New wxColour.Create(128, 59, 59), ..
			New wxColour.Create(59, 128, 59), ..
			New wxColour.Create(59, 59, 128), ..
			New wxColour.Create(128, 128, 59), ..
			New wxColour.Create(128, 59, 128), ..
			New wxColour.Create(59, 128, 128), ..
			New wxColour.Create(128, 98, 0) ]


		Local pen:wxPen = New wxPen.CreateFromColour(light[shape])
		pen.SetCap(wxCAP_PROJECTING)
		dc.SetPen(pen)

		dc.DrawLine(x, y + SquareHeight() - 1, x, y)
		dc.DrawLine(x, y, x + SquareWidth() - 1, y)

		Local darkpen:wxPen = New wxPen.CreateFromColour(dark[Int(shape)])
		darkpen.SetCap(wxCAP_PROJECTING)
		dc.SetPen(darkpen)

		dc.DrawLine(x + 1, y + SquareHeight() - 1, x + SquareWidth() - 1, ..
			y + SquareHeight() - 1)
		dc.DrawLine(x + SquareWidth() - 1, y + SquareHeight() - 1, ..
			x + SquareWidth() - 1, y + 1)

		dc.SetPen(wxTRANSPARENT_PEN())
		dc.SetBrush(New wxBrush.CreateFromColour(colors[shape]))
		dc.DrawRectangle(x + 1, y + 1, SquareWidth() - 2, SquareHeight() - 2)
	End Method

End Type



Type Shape

    Global coordsTable:Int[][][] = [ ..
        [ [ 0, 0 ],   [ 0, 0 ],   [ 0, 0 ],   [ 0, 0 ] ], ..
        [ [ 0, -1 ],  [ 0, 0 ],   [ -1, 0 ],  [ -1, 1 ] ], ..
        [ [ 0, -1 ],  [ 0, 0 ],   [ 1, 0 ],   [ 1, 1 ] ], ..
        [ [ 0, -1 ],  [ 0, 0 ],   [ 0, 1 ],   [ 0, 2 ] ], ..
        [ [ -1, 0 ],  [ 0, 0 ],   [ 1, 0 ],   [ 0, 1 ] ], ..
        [ [ 0, 0 ],   [ 1, 0 ],   [ 0, 1 ],   [ 1, 1 ] ], ..
        [ [ -1, -1 ], [ 0, -1 ],  [ 0, 0 ],   [ 0, 1 ] ], ..
        [ [ 1, -1 ],  [ 0, -1 ],  [ 0, 0 ],   [ 0, 1 ] ] ..
    ]

	Field pieceShape:Int
	Field coords:Int[][] = [ [0,0], [0,0], [0,0], [0,0] ]

	Method New()
		SetShape(NoShape)
	End Method

	Method SetShape(shape:Int)
		For Local i:Int = 0 Until 4
			For Local j:Int = 0 Until 2
				coords[i][j] = coordsTable[shape][i][j]
			Next
		Next
		pieceShape = shape
	End Method

	Method SetRandomShape()
		Local x:Int = Rand(0, 21) Mod 7 + 1
		SetShape(x)
	End Method

	Method GetShape:Int()
		Return pieceShape
	End Method

	Method x:Int(index:Int)
		Return coords[index][0]
	End Method

	Method y:Int(index:Int)
		Return coords[index][1]
	End Method

	Method MinX:Int()
		Local m:Int = coords[0][0]
		For Local i:Int = 0 Until 4
			m = Min(m, coords[i][0])
		Next
		Return m
	End Method

	Method MaxX:Int()
		Local m:Int = coords[0][0]
		For Local i:Int = 0 Until 4
			m = Max(m, coords[i][0])
		Next
		Return m
	End Method

	Method MinY:Int()
		Local m:Int = coords[0][1]
		For Local i:Int = 0 Until 4
			m = Min(m, coords[i][1])
		Next
		Return m
	End Method

	Method MaxY:Int()
		Local m:Int = coords[0][1]
		For Local i:Int = 0 Until 4
			m = Max(m, coords[i][1])
		Next
		Return m
	End Method

	Method RotateLeft:Shape()
		If pieceShape = SquareShape Then
			Return Self
		End If

		Local result:Shape = New Shape
		result.pieceShape = pieceShape

		For Local i:Int = 0 Until 4
			result.SetX(i, y(i))
			result.SetY(i, -x(i))
		Next
		Return result
	End Method

	Method RotateRight:Shape()
		If pieceShape = SquareShape Then
			Return Self
		End If

		Local result:Shape = New Shape
		result.pieceShape = pieceShape

		For Local i:Int = 0 Until 4
			result.SetX(i, -y(i))
			result.SetY(i, x(i))
		Next
		Return result
	End Method

	Method SetX(index:Int, x:Int)
		coords[index][0] = x
	End Method

	Method SetY(index:Int, y:Int)
		coords[index][1] = y
	End Method

End Type

I have simplified the game a bit, so that it is easier to understand. The game starts immediately, after it is launched. We can pause the game by pressing the p key. The space key will drop the tetris piece immediately to the bottom. The d key will drop the piece one line down. (It can be used to speed up the falling a bit.) The game goes at constant speed, no acceleration is implemented. The score is the number of lines, that we have removed.

 ...
 isFallingFinished = False
 isStarted = False
 isPaused = False
 numLinesRemoved = 0
 curX = 0
 curY = 0
 ...

Before we start the game, we initialize some important variables. The isFallingFinished variable determines, it the tetris shape has finished falling and we then need to create a new shape. The numLinesRemoved counts the number of lines, we have removed so far. The curX and curY variables determine the actual position of the falling tetris shape.

 For Local i:Int = 0 Until BoardHeight
     For Local j:Int = 0 Until BoardWidth
         Local shape:int = ShapeAt(j, BoardHeight - i - 1)
         If shape <> NoShape Then
             DrawSquare(dc, 0 + j * SquareWidth(), ..
                        boardTop + i * SquareHeight(), shape)
         End If
     Next
 Next

The painting of the game is divided into two steps. In the first step, we draw all the shapes, or remains of the shapes, that have been dropped to the bottom of the board. All the squares are rememberd in the board array. We access it using the ShapeAt() method.

 If curPiece.GetShape() <> NoShape Then
     For Local i:Int = 0 Until 4
         Local x:Int = curX + curPiece.x(i)
         Local y:Int = curY - curPiece.y(i)
         DrawSquare(dc, 0 + x * SquareWidth(), boardTop + ..
                 (BoardHeight - y - 1) * SquareHeight(), ..
                 curPiece.GetShape());
     Next
 End If

The next step is drawing of the actual piece, that is falling down.

 ...
 Select keycode
 Case WXK_LEFT
     TryMove(curPiece, curX - 1, curY)
 ...

In the OnKeyDown() method we check for pressed keys. If we press the left arrow key, we try to move the piece to the left. We say try, because the piece might not be able to move.

Method OnTimer(event:wxTimerEvent)
    If isFallingFinished Then
        isFallingFinished = False
        NewPiece()
    Else
        OneLineDown()
    End If
End Method

In the OnTimer() method we either create a new piece, after the previous one was dropped to the bottom, or we move a falling piece one line down.

Method DropDown()
    Local newY:Int = curY
    While newY > 0 Then
        If Not TryMove(curPiece, curX, newY - 1) Then
            Exit
        End If
        newY:- 1
    Wend
    PieceDropped()
Wend

The DropDown() method drops the falling shape immediately to the bottom of the board. It happens, when we press the space key.

Method PieceDropped()
    For Local i:Int = 0 Until 4
        Local x:Int = curX + curPiece.x(i)
        Local y:Int = curY - curPiece.y(i)
        SetShapeAt(x, y, curPiece.GetShape())
    Next

    RemoveFullLines()

    If Not isFallingFinished Then
        NewPiece()
    End IF
End Method

In the PieceDropped() method we set the current shape at it's final position. We call the RemoveFullLines() method to check, if we have at least one full line. And we create a new tetris shape, if it wasn't already created in the PieceDropped() method in the meantime.

 If lineIsFull Then
     numFullLines :+ 1
     For Local k:Int = i Until BoardHeight - 1
         For Local j:Int = 0 Until BoardWidth
             SetShapeAt(j, k, ShapeAt(j, k + 1))
         Next
     Next
 End If

This code removes the full lines. After finding a full line we increase the counter. We move all the lines above the full row one line down. This way we destroy the full line. Notice, that in our tetris game, we use so called naive gravity. This means, that the squares may be left floating above empty gaps.

Method NewPiece()
    curPiece.SetRandomShape()
    curX = BoardWidth / 2 + 1
    curY = BoardHeight - 1 + curPiece.MinY()

    If Not TryMove(curPiece, curX, curY)
        curPiece.SetShape(NoShape)
        timer.Stop()
        isStarted = false
        m_stsbar.SetStatusText("game over")
    End If
End Method

The NewPiece() method creates randomly a new tetris piece. If the piece cannot go into it's initial position, the game is over.

Method TryMove:Int(newPiece:Shape, newX:Int, newY:Int)
    For Local i:Int = 0 Until 4
        Local x:Int = newX + newPiece.x(i)
        Local y:Int = newY - newPiece.y(i)
        If x < 0 Or x >= BoardWidth Or y < 0 Or y >= BoardHeight Then
            Return False
        End If
        If ShapeAt(x, y) <> NoShape Then
            Return False
        End If
    Next

    curPiece = newPiece
    curX = newX
    curY = newY
    Refresh()
    Return True
End Method

In the TryMove() method we try to move our shapes. If the shape is at the edge of the board or is adjacent to some other shape, we return false. Otherwise we place the current falling shape to a new position and return true.

The Shape class saves information about the tetris piece.

 For Local i:Int = 0 Until 4
     For Local j:Int = 0 Until 2
         coords[i][j] = coordsTable[shape][i][j]
     Next
 Next

The coords array saves the coordinates of the tetris piece. For example, numbers { 0, -1 }, { 0, 0 }, { 1, 0 }, { 1, 1 } , represent a rotated S-shape. The following diagram illustrates the shape.

Figure: Coordinates

When we draw the current falling piece, we draw it at curX, curY position. Then we look at the coordinates table and draw all the four squares.

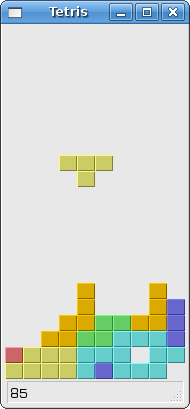

Figure: Tetris

Contents ‡ Top of Page
