Widgets II

In this chapter, we will continue introducing various other widgets.

wxListBox

A wxListBox widget is used for displaying and working with a list of items. As it's name indicates, it is a rectangle that has a list of strings inside. We could use it for displaying a list of mp3 files, book names, module names of a larger project or names of our friends. A wxListBox can be created in two different states. In a single selection state or a multiple selection state. The single selection state is the default state. There are two significant events in wxListBox. The first one is the wxEVT_COMMAND_LISTBOX_SELECTED event. This event is generated when we select a string in a wxListBox. The second one is the wxEVT_COMMAND_LISTBOX_DOUBLE_CLICKED event. It is generated when we double click an item in a wxListBox. The number of elements inside a wxListBox is limited on GTK platform. According to the documentation, it is currently around 2000 elements. The elements are numbered from zero. Scrollbars are displayed automatically if needed.

listbox.bmx <- Open source
SuperStrict Framework wx.wxApp Import wx.wxFrame Import wx.wxPanel Import wx.wxListBox Import wx.wxTextEntryDialog Const ID_RENAME:Int = 1 Const ID_LISTBOX:Int = 5 New MyApp.Run() Type MyApp Extends wxApp Method OnInit:Int() Local lb:TListbox = TListbox(New TListbox.Create(Null, wxID_ANY, .. "Simple", -1, -1, 270, 200)) lb.Show(True) Return True End Method End Type Type TListbox Extends wxFrame Field listbox:wxListBox Field btnPanel:MyPanel Method OnInit() Local panel:wxPanel = New wxPanel.Create(Self, -1) Local hbox:wxBoxSizer = New wxBoxSizer.Create(wxHORIZONTAL) listbox = New wxListBox.Create(panel, ID_LISTBOX, .. Null, -1, -1, -1, -1) hbox.Add(listbox, 3, wxEXPAND | wxALL, 20) btnPanel = MyPanel(New MyPanel.Create(panel)) hbox.Add(btnPanel, 2, wxEXPAND | wxRIGHT, 10) ConnectAny(wxEVT_COMMAND_LISTBOX_DOUBLECLICKED, OnDblClick) panel.SetSizer(hbox) Centre() End Method Function OnDblClick(event:wxEvent) Local lb:TListBox = TListBox(event.parent) Local renamed:String Local sel:Int = lb.listbox.GetSelection() If sel <> -1 Then renamed = wxGetTextFromUser("Rename item", .. "Rename dialog", lb.listbox.GetString(sel)) End If If renamed Then lb.listbox.DeleteItem(sel) lb.listbox.Insert(renamed, sel) End If End Function End Type Type MyPanel Extends wxPanel Field m_lb:wxListBox Field m_newb:wxButton Field m_renameb:wxButton Field m_clearb:wxButton Field m_deleteb:wxButton Method OnInit() Local vbox:wxBoxSizer = New wxBoxSizer.Create(wxVERTICAL) Local lb:TListbox = TListbox(GetParent().GetParent()) m_lb = lb.listbox m_newb = New wxButton.Create(Self, wxID_NEW, "New") m_renameb = New wxButton.Create(Self, ID_RENAME, "Rename") m_deleteb = New wxButton.Create(Self, wxID_DELETE, "Delete") m_clearb = New wxButton.Create(Self, wxID_CLEAR, "Clear") Connect(wxID_NEW, wxEVT_COMMAND_BUTTON_CLICKED, OnNew) Connect(ID_RENAME, wxEVT_COMMAND_BUTTON_CLICKED, OnRename) Connect(wxID_CLEAR, wxEVT_COMMAND_BUTTON_CLICKED, OnClear) Connect(wxID_DELETE, wxEVT_COMMAND_BUTTON_CLICKED, OnDelete) vbox.AddCustomSpacer(-1, 20) vbox.Add(m_newb) vbox.Add(m_renameb, 0, wxTOP, 5) vbox.Add(m_deleteb, 0, wxTOP, 5) vbox.Add(m_clearb, 0, wxTOP, 5) SetSizer(vbox) End Method Function OnNew(event:wxEvent) Local s:String = wxGetTextFromUser("Add new item") If s Then MyPanel(event.parent).m_lb.Append(s) End If End Function Function OnRename(event:wxEvent) Local pnl:MyPanel = MyPanel(event.parent) Local renamed:String Local sel:Int = pnl.m_lb.GetSelection() If sel <> -1 Then renamed = wxGetTextFromUser("Rename item", .. "Rename dialog", pnl.m_lb.GetString(sel)) End If If renamed Then pnl.m_lb.DeleteItem(sel) pnl.m_lb.Insert(renamed, sel) End If End Function Function OnClear(event:wxEvent) MyPanel(event.parent).m_lb.Clear() End Function Function OnDelete(event:wxEvent) Local pnl:MyPanel = MyPanel(event.parent) Local sel:Int = pnl.m_lb.GetSelection() If sel <> -1 Then pnl.m_lb.DeleteItem(sel) End If End Function End Type

 listbox = New wxListBox.Create(panel, ID_LISTBOX, Null, -1, -1, -1, -1)

This is the constructor of the listbox widget.

In our example, we have a list box and four buttons. The buttons are used to add, rename, delete and clear all items in the listbox.

 Local s:String = wxGetTextFromUser("Add new item")
 If s Then
     m_lb.Append(str)
 End If

To add a new string to the listbox, we display a wxGetTextFromUser dialog. We call the Append() method to append string to the listbox.

 m_lb.Clear()

To clear all items is the easiest action to do. We just call the Clear() method.

 Local sel:Int = m_lb.GetSelection()
 If sel <> -1 Then
     m_lb.DeleteItem(sel)
 End If

To delete an item, we figure out the selected item. Then we call the Delete() method.

Renaming an item requires several steps.

 Local renamed:String
 Local sel:Int = m_lb.GetSelection()
 If sel <> -1 Then
     renamed = wxGetTextFromUser("Rename item", ..
     	"Rename dialog", m_lb.GetString(sel))
 End If

We get the selected string and save it to the renamed variable.

 If renamed Then
     m_lb.DeleteItem(sel)
     m_lb.Insert(renamed, sel)
 End If

We check whether the renamed variable is empty. This is to avoid inserting empty strings. Then we delete the old item and insert a new one.

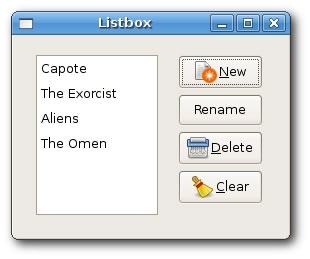

Listbox
Figure: Listbox

wxNotebook

wxNotebook widget joins multiple windows with corresponding tabs. You can position the Notebook widget using the following style flags:

The default position is wxNB_TOP.


SuperStrict

Framework wx.wxApp
Import wx.wxFrame
Import wx.wxNotebook
Import wx.wxSheet

New MyApp.Run()

Type MyApp Extends wxApp

	Method OnInit:Int()

		Local sim:Notebook = Notebook(New Notebook.Create(Null, wxID_ANY, ..
			"Notebook", -1, -1, 400, 350))
		sim.Show(True)

		Return True
	End Method

End Type

Type Notebook Extends wxFrame

	Method OnInit()

		Local nb:wxNotebook = New wxNotebook.Create(Self, -1, ..
			-1, -1, -1, -1, wxNB_BOTTOM)

		Local menubar:wxMenuBar = New wxMenuBar.Create()
		Local file:wxMenu = New wxMenu.Create()
		file.Append(wxID_CLOSE, "Quit", "")
		menubar.Append(file, "&File")
		SetMenuBar(menubar)

		ConnectAny(wxEVT_COMMAND_MENU_SELECTED, OnQuit)

		Local grid1:MySheet = MySheet(New MySheet.Create(nb, -1))
		Local grid2:MySheet = MySheet(New MySheet.Create(nb, -1))
		Local grid3:MySheet = MySheet(New MySheet.Create(nb, -1))

		nb.AddPage(grid1, "Sheet1")
		nb.AddPage(grid2, "Sheet2")
		nb.AddPage(grid3, "Sheet3")

		CreateStatusBar()

		Centre()

	End Method

	Function OnQuit(event:wxEvent)
		wxWindow(event.parent).Close(True)
	End Function

End Type

Type MySheet Extends wxSheet

	Method OnInit()
		CreateGrid(30, 30)
		SetRowLabelWidth(50)
		SetColLabelHeight(25)
		Local attr:wxSheetCellAttr = GetDefaultRowLabelAttr()
		attr.SetAlignmentHV(wxALIGN_RIGHT, wxALIGN_CENTRE)
		attr.SetFont(New wxFont.CreateWithAttribs(9, ..
			wxFONTFAMILY_DEFAULT, wxFONTSTYLE_NORMAL, wxFONTWEIGHT_BOLD))

		For Local i:Int = 0 Until 30
		    SetRowHeight(i, 25)
		Next
	End Method

End Type

In this example, we have created a notebook widget with three sheets. The notebook widget is positioned at the bottom.

 Local nb:wxNotebook = New wxNotebook.Create(Self, -1, -1, -1, ..
      -1, -1, wxNB_BOTTOM)

Here we create the notebook widget.

 nb.AddPage(sheet1, "Sheet1")
 nb.AddPage(sheet2, "Sheet2")
 nb.AddPage(sheet3, "Sheet3")

We add three sheet objects into the notebook widget.

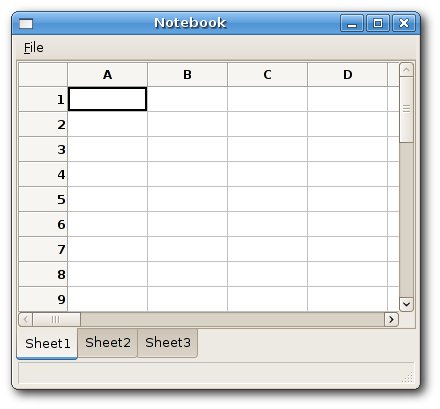

Notebook
Figure: Notebook widget

wxScrolledWindow

This is one of the container widgets. It can be useful, when we have a larger area than a window can display. In our example, we demonstrate such a case. We place a large image into our window. When the window is smaller than our image, Scrollbars are displayed automatically.


SuperStrict

Framework wx.wxApp
Import wx.wxFrame
Import wx.wxScrolledWindow
Import wx.wxStaticBitmap

New MyApp.Run()

Type MyApp Extends wxApp

	Method OnInit:Int()

		Local sim:ScrolledWindow = ScrolledWindow(New ScrolledWindow.Create(Null, wxID_ANY, ..
			"ScrolledWindow", -1, -1, 300, 200))
		sim.Show(True)

		Return True
	End Method

End Type

Type ScrolledWindow Extends wxFrame

	Method OnInit()

		wxImage.AddHandler(New wxJPEGHandler)

		Local sw:wxScrolledWindow = New wxScrolledWindow.Create(Self)

		Local bmp:wxBitmap = New wxBitmap.CreateFromFile("../media/castle.jpg", wxBITMAP_TYPE_JPEG)
		Local sb:wxStaticBitmap = New wxStaticBitmap.Create(sw, -1, bmp)

		Local width:Int = bmp.GetWidth()
		Local height:Int = bmp.GetHeight()

		sw.SetScrollbars(10, 10, width/10, height/10)
		sw.Scroll(20, 5)

		Centre()

	End Method

End Type

In our example, we display a picture of a Spis castle.

 wxImage.AddHandler(New wxJPEGHandler)

To handle jpg images, we must initiate the wxJPEGHandler.

 Local sw:wxScrolledWindow = New wxScrolledWindow.Create(Self)

 Local bmp:wxBitmap = New wxBitmap.CreateFromFile("castle.jpg", wxBITMAP_TYPE_JPEG)
 Local sb:wxStaticBitmap = New wxStaticBitmap.Create(sw, -1, bmp)

We create a scroll window and put a static bitmap into it.

 sw.SetScrollbars(10, 10, width/10, height/10)

We set the scrollbars.

 sw.Scroll(20, 5)

We scroll the window a bit.

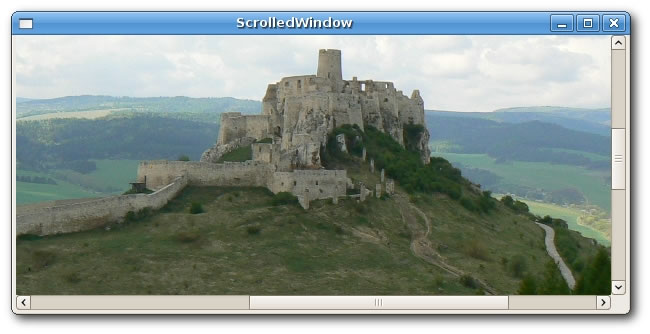

Scrolled Window
Figure: Scrolled Window
